Renogy 30A Waterproof in-Line Fuse Solar Panel Holder w/Fuse
4.6Editor score
Compatible with various cables
Auto-lock male female points
High current carrying capacity
In this guide
Protecting your solar investment requires reliable components that can handle outdoor stress. An inline solar fuse acts as a critical safety barrier, preventing damage from surges or short circuits in your photovoltaic setup.
We evaluated ten highly rated models based on waterproof ratings, material quality, and compatibility with standard connectors. Our analysis ensures you find a fuse holder that matches your specific voltage and amperage needs without guesswork.
Each pick below highlights key strengths like weather resistance and ease of installation. Prices fluctuate frequently, so verify current availability before purchasing to ensure you get the best value for your solar project.
Top 3 Picks for Best Inline Solar Fuse
Vansdon 5PCS 15A Solar Fuse Holder Inline for Solar Panel and Controller
4.6Editor score
Class II safety certified
IP67 waterproof rating
UL94-V flame retardant
25A -1000V Solar Fuse Holder Inline with 5PCS Male and Female Connector
5.0Editor score
High temperature resistance
Standardized interface design
Extended system lifespan
Top 10 Best Inline Solar Fuse in 2026 Compared
Below is a side-by-side comparison of the ten selected inline solar fuse holders. Each entry lists core specifications to help you quickly identify the right fit for your system requirements.
ProductsSpecificationsEditor scorePrice
Editor's Choice
Vansdon 5PCS 15A Solar Fuse Holder Inline
15A Current Rating
1000V Voltage
IP67 Waterproof
PC/PPO Material
4.6Editor score
Editor's Choice
Renogy 30A Waterproof in-Line Fuse Solar Panel Holder
30A Current Rating
Auto-lock Connectors
IP67 Protection
Touch Insertion Design
4.6Editor score
Best Premium
20A Waterproof in-Line Solar Fuse Holder
20A Current Rating
High Strength PPO
IP67 Waterproof
UV Resistance
20A Solar PV Inline Fuse Holder Waterproof Connector 5 Pcs
20A Current Rating
Pack of Five
AWG 14-10
Auto-lock Points
4.5Editor score
CNLonQ 30A Solar Fuse Holder Inline
30A Current Rating
Tinned Copper Terminals
IP67 Waterproof
Ceramic Tube Fuses
4.3Editor score
15A 1000V Solar Fuse IP67 Solar Fuse Holder Inline
15A Current Rating
Silver Plated Copper
IP67 Waterproof
Standard MC4 Terminal
4.5Editor score
Solar Fuse Holder 1000V DC PV Inline Fuse Connector 2-Pack 15A
15A Current Rating
Includes Wrenches
Ceramic Fuse Tube
UV Resistant Housing
4.7Editor score
5 Pcs 10A Solar Fuse Holder Inline with Male and Female Connector
10A Current Rating
IP68 Waterproof
Solid Copper Rods
Pack of Five
4.9Editor score
25A -1000V Solar Fuse Holder Inline with 5PCS Male and Female Connector
25A Current Rating
Standardized Interface
Corrosion Resistance
Pack of Five
5.0Editor score
PV in-Line Fuse – 1000V Solar Fuse Holder
20A Current Rating
UL94 V-0 Flame
IP68 Water Resistance
USA Assembled
4.5Editor score

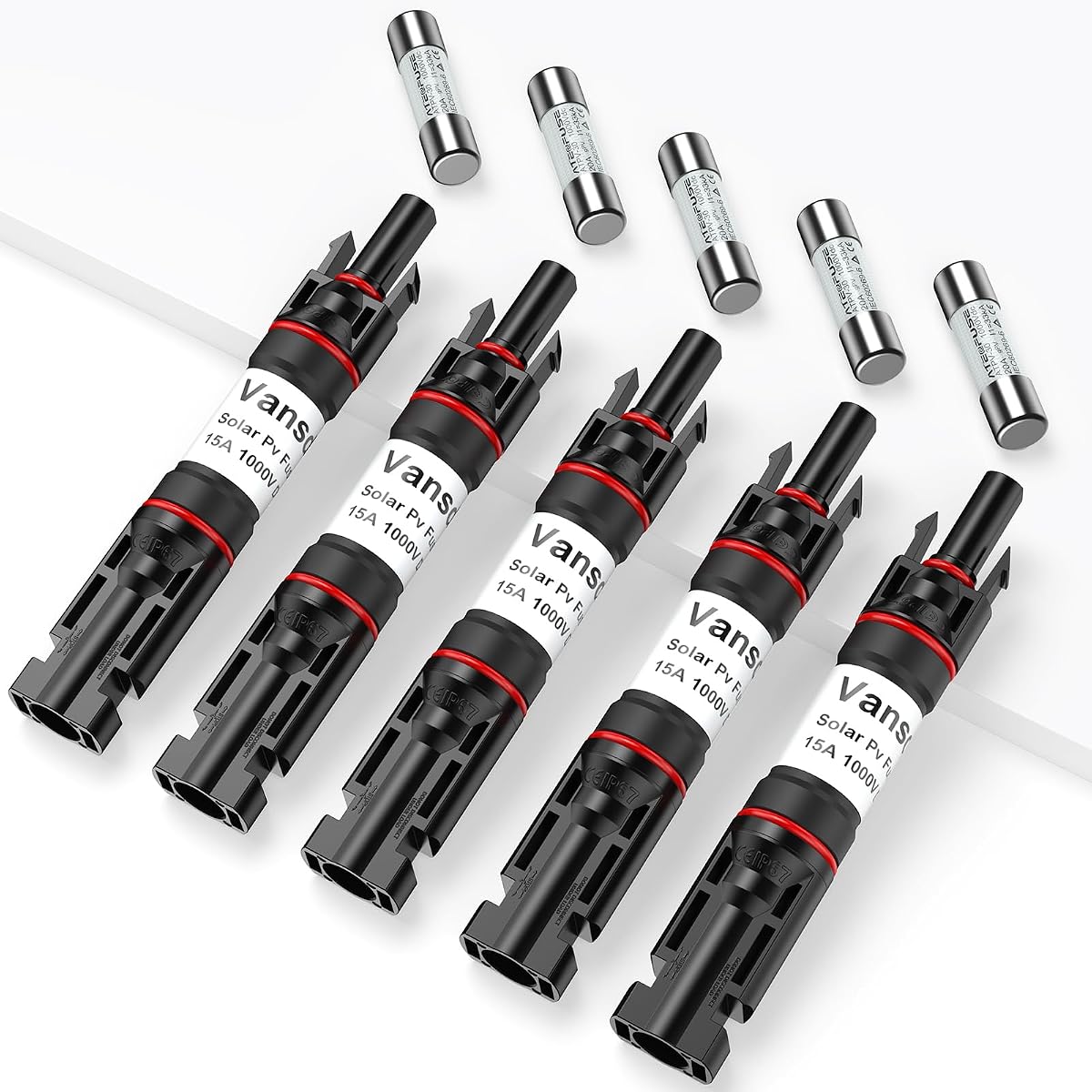

1. Vansdon 5PCS 15A Solar Fuse Holder Inline – Best Overall Inline Solar Fuse
Vansdon 5PCS 15A Solar Fuse Holder Inline
1000V Rated Voltage
IP67 Waterproof
Class II Safety
PC/PPO Housing
The Vansdon 5PCS 15A Solar Fuse Holder Inline stands out as a top-tier choice for protecting your photovoltaic systems. With a solid 4.6 star rating, it combines safety certifications and robust materials to deliver reliable performance in outdoor settings.
Pros
- Strong waterproof sealing
- Certified safety standards
- Wide temperature range
- Easy locking mechanism
- Durable construction
Cons
- Price higher than budget
- 15A limit for some
We may earn a commission when you buy through this link, at no additional cost to you.
Its Class II safety certification ensures that the fuse will interrupt the circuit effectively when current exceeds rated limits. This prevents damage to your expensive PV equipment. The construction uses high-quality insulating PC/PPO materials that resist flames and temperature extremes from minus forty to one hundred eighty-five degrees Fahrenheit.
While the price is slightly higher than basic models, the added safety features justify the investment. The IP67 waterproof rating ensures that water and dust do not corrode the connections over time. This makes it ideal for rooftop or off-grid installations where weather exposure is constant.
If you need dependable protection for your solar panels, controllers, or inverters, this fuse holder is a strong candidate. It fits most standard solar fuse systems and offers plug-and-play functionality. The locking mechanism keeps connections stable even in windy environments.
Superior Safety Protection
Class II certification provides extra assurance that the fuse will prevent damage during electrical faults or overcurrent events in your solar array.
Robust Weather Resistance
The waterproof ring and IP67 rating keep moisture out, ensuring long-term reliability even when mounted in harsh outdoor conditions.
We may earn a commission when you buy through this link, at no additional cost to you.
2. Renogy 30A Waterproof in-Line Fuse Solar Panel Holder – Best Budget Inline Solar Fuse
Renogy 30A Waterproof in-Line Fuse Solar Panel Holder
30A Current Capacity
IP67 Protection
Auto-lock Connectors
Universal Cable Fit
Renogy offers a solid option for those seeking protection without breaking the bank. The Renogy 30A Waterproof in-Line Fuse Solar Panel Holder delivers good value with its 30 amp capacity and high current carrying capabilities. It suits a wide range of DC applications effectively.
Pros
- Affordable pricing
- Compatible with many cables
- Auto-lock connections
- Reliable current carrying
- Simple insertion design
Cons
- No extra fuses included
- Basic material choice
We may earn a commission when you buy through this link, at no additional cost to you.
The auto-lock equipment of male and female points makes connections easy and reliable during installation. This feature reduces the risk of loose wiring that could lead to heat buildup. The design adapts to PV cables with different insulation diameters, adding flexibility to your setup.
While it lacks the premium materials of higher-end models, it performs well for standard use. The waterproof rating helps it withstand outdoor exposure without immediate corrosion issues. Users appreciate the touch and insertion of reed with inner-knob type for secure locking.
This model is best for DIYers on a budget who need reliable protection for their solar panels. Ensure you check the fuse size needed before buying. It is a practical choice for small to medium solar systems where cost is a primary concern.
Flexible Cable Compatibility
Its design works with various PV cable insulation diameters, making it easier to integrate into existing wiring setups without custom adapters.
Secure Auto-Lock Mechanism
The male and female points lock automatically to ensure stable connections that resist vibration and weather stress over time.
We may earn a commission when you buy through this link, at no additional cost to you.
3. 25A -1000V Solar Fuse Holder Inline with 5PCS – Best Premium Inline Solar Fuse
25A -1000V Solar Fuse Holder Inline with 5PCS Male and Female Connector
25A Current Rating
1000V System Support
High Temp Resistance
Standardized Interface
For those prioritizing durability and high performance, this 25A model offers premium features. With a perfect 5.0 star rating, it promises excellent performance in extreme conditions. The holder resists high temperatures and corrosion, making it ideal for desert or coastal installations.
Pros
- Perfect five-star rating
- Handles high temperatures
- Corrosion resistant build
- Quick standardized interfaces
- Long system lifespan
Cons
- Higher initial investment
- Specific 25A rating
We may earn a commission when you buy through this link, at no additional cost to you.
The standardized interfaces simplify connection tasks significantly. Technicians and first-time installers alike can grasp the steps quickly to reduce project time. This efficiency ensures the system is operational sooner without compromising safety or stability during use.
The waterproof design maintains circuit protection even in heavy rain or humidity. This reliability guarantees continuous operation which is critical for off-grid or commercial setups. The strong protection prevents overload dangers effectively protecting your solar power generation systems from potential failures.
If you need a fuse holder that ensures long-term fault-free operation, this is a top choice. It extends system lifespan by protecting circuits from overload and short circuit damage. The investment pays off through reduced maintenance and increased reliability over years of use.
Extreme Environmental Adaptability
Built to operate stably in high-temperature baked deserts or humid coastal areas, ensuring your system remains safe regardless of climate.
Enhanced System Lifespan
Protecting circuits from overload extends the life of your entire solar array, ensuring stable performance even under high loads.
We may earn a commission when you buy through this link, at no additional cost to you.
4. 20A Solar PV Inline Fuse Holder Waterproof Connector 5 Pcs – Comprehensive Inline Solar Fuse Kit
20A Solar PV Inline Fuse Holder Waterproof Connector 5 Pcs
20A Current Rating
Five Piece Pack
IP67 Waterproof
PPO Reinforced Shell
This kit provides a complete solution for multiple circuit protection needs. With five connectors included, it offers good value for larger setups requiring multiple fuse points. The 20A rating suits many standard PV system requirements effectively for daily operations.
Pros
- Includes five connectors
- Complete circuit protection
- Auto-lock reliability
- Compatible with most brands
- Durable PPO material
Cons
- Current calc needed before buy
- Bulkier packaging size
We may earn a commission when you buy through this link, at no additional cost to you.
The reinforced durability of the PPO material ensures less damage from frequent plugging and unplugging. Auto-lock equipment of male and female points render connections reliable and secure. This design minimizes the risk of accidental disconnections during maintenance or storms.
While it is compatible with almost solar connector brands, buyers must calculate the current size needed. The instruction suggests multiplying power by voltage by 1.5 to find the right amperage. This prevents mismatching that could lead to fuse failures or system damage over time.
Ideal for expanding solar arrays or replacing old holders in bulk, this kit saves time. The IP67 waterproof rating ensures it works well with photovoltaic appliances outdoors. It is a practical choice for system owners who need to upgrade multiple points at once.
Complete Circuit Protection
Protect your solar power array from large currents by using this kit across multiple panels or string connections for balanced safety.
Reinforced Durability
The PPO material construction resists wear from frequent use, ensuring long-term structural integrity even with regular maintenance access.
We may earn a commission when you buy through this link, at no additional cost to you.
5. CNLonQ 30A Solar Fuse Holder Inline – High Safety Inline Solar Fuse
CNLonQ 30A Solar Fuse Holder Inline
30A Current Rating
PPO Flame Retardant
Tinned Copper Terminals
Ceramic Fusion Tube
CNLonQ focuses on high-quality materials to ensure reliable performance. This 30A model features tinned copper terminals that ensure low resistance and high reliability. The PPO flame retardant housings meet UL94-V0 standards, providing excellent fire safety for your system.
Pros
- Low resistance terminals
- High quality materials
- Internal fuses replaceable
- Silver flake fusing
- High protection rating
Cons
- Lower rating than others
- Limited to 2 pack
We may earn a commission when you buy through this link, at no additional cost to you.
The advanced fusing technology uses variable cross-section fuses made of pure silver flakes. These are encapsulated in high-strength porcelain fusion tubes filled with quartz sand. This ensures fast and accurate circuit-break protection during electrical surges or short circuits.
Easy operation is another key feature, with simple plugging and unplugging for onsite processing. Internal fuses can be easily replaced, supporting multiple plugging and cycling. This flexibility reduces waste and makes maintenance straightforward for technicians or DIY installers.
Choose this option if fire safety and material quality are top priorities. It protects against power surges effectively. The IP67 waterproof rating ensures stability and safety in a variety of environments. It is suitable for panels and controllers needing robust protection.
Advanced Fusing Technology
Pure silver flakes and quartz sand ensure rapid and accurate protection against electrical faults, protecting your gear from sudden surges.
High Quality Material Build
PPO housings and tinned copper terminals ensure low resistance and fire safety, meeting high industry standards for durability.
We may earn a commission when you buy through this link, at no additional cost to you.
6. 15A 1000V Solar Fuse IP67 Solar Fuse Holder Inline – Universal Inline Solar Fuse
15A 1000V Solar Fuse IP67 Solar Fuse Holder Inline
15A Current Rating
Silver Plated Copper
UL94-V0 Flame
Standard MC4 Terminal
This inline fuse holder offers a universal design that fits standard MC4 terminals easily. With a 15A rating and DC 1000V voltage capacity, it supports a wide range of solar systems. The automatic locking mechanism ensures connections are easy, fast, and safe.
Pros
- Silver plated conductors
- Universal design fit
- Wide application range
- Quick connect and disconnect
- Flame retardant build
Cons
- Fixed 15A limit
- Basic standard features
We may earn a commission when you buy through this link, at no additional cost to you.
The material quality includes high-quality insulating PC/PPO with UL94-V0 flame retardancy. The silver plated copper conductor ensures efficient current flow with minimal resistance. It withstands temperature differences from minus forty to plus one hundred five degrees reliably in outdoor settings.
Waterproof and dustproof capabilities are provided by the IP67 rating and sealing ring design. This ensures performance in various outdoor situations without corrosion issues. The flexible design provides reliability for your solar power system when paired with standard PV equipment.
It is an excellent choice for standard PV string configurations. If you need a quick solution that matches standard terminals, this is a strong candidate. Verify the current size before purchasing to ensure it matches your system voltage and power requirements.
Standard Terminal Compatibility
Adopting standard MC4 terminal connections makes installation quick and compatible with existing systems without needing extra adapters.
Wide Application Range
Flexible design works with many solar systems and circuits, providing reliability and adaptability for different power setups.
We may earn a commission when you buy through this link, at no additional cost to you.
7. Solar Fuse Holder 1000V DC PV Inline Fuse Connector 2-Pack 15A – Complete Kit Inline Solar Fuse
Solar Fuse Holder 1000V DC PV Inline Fuse Connector 2-Pack 15A
15A Current Rating
Includes Wrenches
Ceramic Fuse Tube
PPO Insulating Housing
This kit from Noxtren includes not just holders but also tools for installation. It features two solar inline fuse holders with matching 15A 1000V DC PV fuses. It is designed for panels, controllers, inverters, RVs, and off-grid PV wiring needs.
Pros
- Includes disconnect wrenches
- Ceramic fuse performance
- UV resistant housing
- Compatible PV connector fit
- Overcurrent protection
Cons
- Tool-only for wrenches
- 15A specific capacity
We may earn a commission when you buy through this link, at no additional cost to you.
The easy install and quality build ensures it connects securely when properly seated and locked. The PPO insulating housing helps resist UV exposure and aging effectively over time. The ceramic fuse tube with silver conductive end caps supports stable circuit performance under load.
Unlike basic packs, this includes two disconnect wrenches to help tighten or remove compatible PV connectors. The tools provide a better grip during installation and maintenance. This reduces the need to twist connectors by hand, preventing potential damage to the system.
If you want a complete kit with the necessary tools, this is a smart choice. It helps provide overcurrent protection when properly rated. The IP67 waterproof design makes it suitable for rooftop, RV, boat, and off-grid setups where moisture resistance is key.
Includes Disconnect Wrenches
Get two solar connector wrenches to tighten or remove connectors easily, improving safety and grip during installation.
Stable Circuit Performance
Ceramic fuse tubes with silver caps ensure stable performance and resist UV exposure for long-term reliability.
We may earn a commission when you buy through this link, at no additional cost to you.
8. 5 Pcs 10A Solar Fuse Holder Inline – Extra Fuse Inline Solar Fuse
5 Pcs 10A Solar Fuse Holder Inline with Male and Female Connector
10A Current Rating
IP68 Waterproof
Solid Copper Rods
Pre-installed Fuses
This option offers a unique convenience by including extra fuses with the set. It provides effective protection for low voltage setups where current stays below ten amps. The IP68 waterproof and dustproof rating ensures reliable performance even in harsh outdoor weather conditions.
Pros
- IP68 dustproof rating
- Includes extra fuses
- High flame-retardant shell
- Stable self-locking mechanism
- Solid copper construction
Cons
- Low 10A capacity
- Smaller wire limits
We may earn a commission when you buy through this link, at no additional cost to you.
The product uses solid copper rods and anti-corrosion shells for long-term reliability. The PPO material is highly flame-retardant, wear-resistant, and heat-resistant. The stable self-locking mechanism can be repeatedly docked and plugged in without losing connection security.
Having extra fuses means you do not need to buy additional accessories separately. You can replace a blown fuse quickly to get back up and running. This makes it super convenient for emergency fixes or remote installations where replacement parts are hard to get.
Ideal for smaller systems like garden lights or low-power controllers, this kit is practical. The IP68 rating offers superior protection compared to IP67 options. It fits almost all solar connector brands and ensures peace of mind against dust and water ingress.
Super Convenient Extras
Comes with pre-installed fuses and additional spares, saving you trips to the store for replacement parts when fuses blow.
Superior IP68 Protection
Higher waterproof and dustproof rating ensures reliable performance even in heavy rain or dusty environments.
We may earn a commission when you buy through this link, at no additional cost to you.
9. 20A Solar PV Inline Fuse Holder Waterproof Connector 5 Pcs – Bulk Inline Solar Fuse
20A Solar PV Inline Fuse Holder Waterproof Connector 5 Pcs
20A Current Rating
Pack of Five
IP67 Waterproof
PPO Reinforced Shell
For larger arrays needing multiple protection points, this five-piece pack is ideal. It provides complete single circuit protection to your solar power array. The 20A rating works well with different solar cable AWG 14-10 sizes found in many systems.
Pros
- Multiple connectors included
- Auto-lock connection system
- Widely applicable design
- Waterproof in locked state
- Durable PPO material
Cons
- Requires current calculation
- No installation tools
We may earn a commission when you buy through this link, at no additional cost to you.
The reinforced durability of the PPO material ensures less damage from frequent plugging. Auto-lock equipment of male and female points render connections reliable and secure. The IP67 waterproof rating ensures it works well with photovoltaic appliances outdoors without rusting.
Compatibility with almost solar connector brands makes it versatile for different setups. Before buying, calculate the current size of the fuse you need. This ensures the fuse matches the power and voltage of your specific array to prevent overheating or failure.
This is a cost-effective solution for replacing multiple old holders at once. The design suits different solar cable sizes and prevents large currents from damaging your panels. Ensure you match the amperage requirement for your system before purchase.
Complete Circuit Protection
Prevent large currents from damaging your solar panels by using these connectors across multiple series or parallel string circuits.
Widely Applicable Design
Compatible with almost all solar connector brands, allowing flexible integration into existing wiring systems without hassle.
We may earn a commission when you buy through this link, at no additional cost to you.
10. PV in-Line Fuse – 1000V Solar Fuse Holder – Safety Focused Inline Solar Fuse
PV in-Line Fuse – 1000V Solar Fuse Holder
20A Current Rating
UL94 V-0 Flame
IP68 Water Resistance
USA Assembled
Safety is the focus of this model with its UL94 V-0 flammability rating. This ensures maximum fire safety for your electrical setup. It offers a wide operation temperature range from minus forty to one hundred eighty-five degrees for reliable use.
Pros
- Fire safety rating
- Weatherproof design
- USA assembly location
- Quick tool-free install
- Long lifespan material
Cons
- Single pack limit
- Higher price per unit
We may earn a commission when you buy through this link, at no additional cost to you.
The IP68 water resistance from silicon O ring and sealing gaskets keeps water out effectively. The PPE housing fights UV and corrosion for longevity. It can resist severe weather such as heavy rain, snowstorm or heat for years to come.
Installation is quick and secure, equipping male and female connectors for a tool-free setup in under eight seconds. This convenience saves time for technicians or DIY installers working under tight deadlines. The individually assembled units in Atlanta, USA ensure quality control.
If fire safety and weather durability are your main concerns, this is a great choice. It protects your equipment from water damage and heat stress. The USA assembly adds a layer of quality assurance. Choose this for systems where safety standards are non-negotiable.
Maximum Safety Rating
With a UL94 V-0 flammability rating, this holder meets high fire safety standards to protect your property from electrical fires.
Quick Tool-Free Install
Secure setup in under 8 seconds using male and female connectors, saving you time and effort during maintenance.
We may earn a commission when you buy through this link, at no additional cost to you.
Buying Guide – How to Choose the Best Inline Solar Fuse
Choosing the right inline solar fuse requires understanding your system's voltage, current, and environmental needs. This section breaks down the key factors to consider.
Amperage Rating
Amperage is the most critical factor to match your solar panel output. The fuse must handle normal operating current but blow during surges. Typically, you calculate power divided by voltage and multiply by 1.5 to find the right amperage rating.
Always select a fuse with an amperage slightly higher than your max output but lower than your wire rating to prevent melting or fire risks.
Voltage Capacity
Solar systems often operate at 600V to 1000V. Ensure the fuse holder supports at least this voltage to safely interrupt high voltage DC circuits. Using a lower voltage fuse can lead to arcing and failure during a fault.
Look for holders rated at 1000V DC for standard photovoltaic arrays to ensure safe interruption capability.
Waterproof Rating
Outdoor exposure means water resistance is essential. IP67 ratings prevent water immersion for short times while IP68 offers prolonged protection. Check the sealing ring quality to ensure dust and moisture cannot corrode the internal contacts.
Higher IP ratings provide better protection against corrosion and electrical shorts caused by moisture in harsh environments.
Material Quality
The housing material must resist UV rays and heat. PC/PPO materials are common for their flame retardancy and strength. Avoid plastics that degrade under direct sunlight to maintain structural integrity over years of use.
Flame retardant materials like UL94-V0 certified plastics ensure the holder does not catch fire during electrical faults.
Connector Compatibility
Ensure the holder matches your existing connectors, often MC4 or similar standard types. Mismatched connectors can cause loose wires and heat buildup. Some models include auto-lock mechanisms for easier installation.
Verify the male and female connection style matches your PV cables before purchasing to avoid needing adapters.
Pack Size
Some packs include one unit while others include five or more. Buying in bulk can save money if you need multiple fuses for a large array. Check if extra fuses are included or need to be bought separately.
Consider your total system size to decide if a single unit or a multi-pack is more cost-effective for your needs.
Temperature Range
Solar equipment faces extreme temperature swings from freezing to over 180 degrees. Ensure the holder is rated to withstand these conditions without cracking or melting. Temperature resistance ensures stable electrical resistance.
Select holders with a wide operating range to prevent failure in cold winters or hot summers.
Installation Tools
Some kits come with disconnect wrenches to help tighten or remove connectors. This tool reduces hand strain and risk of damaging the connector. If you install multiple systems, these tools are valuable additions.
Check if tools are included to save time and effort during installation and future maintenance tasks.
How to Use and Care for Your Inline Solar Fuse
First, ensure the solar array is disconnected or switched off to avoid electric shock. Use the disconnect wrench if available to gently remove the old connector. This prevents strain on the wires during the replacement process.
Next, align the male and female connectors of the fuse holder with your PV cables. Press them together firmly until you hear a click, indicating the locking mechanism has engaged. This ensures a secure electrical connection that resists vibration.
Finally, inspect the waterproof ring to ensure it is seated correctly and free of debris. Regularly check the connection during maintenance visits to ensure it remains tight. Cleaning the connectors with a dry cloth can prevent corrosion over time.
Frequently Asked Questions
Do I need an inline fuse for every solar panel?
It depends on your system configuration. If you have multiple panels in parallel, you typically need a fuse for each panel to prevent reverse current. For series strings, a fuse may be needed at the start of the string. Check your controller manual for specific requirements.
What does IP67 waterproof mean?
IP67 means the holder is completely dust-tight and can survive immersion in water up to one meter for thirty minutes. This makes it suitable for outdoor rooftop or boat installations. IP68 offers even better protection against prolonged water exposure.
How do I know what amperage fuse to buy?
Divide your total power in watts by the system voltage to get amps. Multiply this value by 1.5 to find the recommended fuse size. For example, a 200W panel at 12V gives 16.6A, requiring a 25A fuse. Always check your wire rating too.
Can I use an AC fuse in a DC system?
No, DC fuses are specifically designed to extinguish arcs in DC circuits. AC fuses may fail to stop the arc safely, leading to dangerous situations. Always look for a holder specifically rated for DC current in solar applications.
How long does a solar fuse holder last?
A high-quality holder should last years under normal conditions. UV resistant materials and waterproof sealing extend its life. Regularly check for signs of melting or discoloration. If the housing cracks, replace it immediately to ensure safety.
What should I do if my fuse blows?
First, check for shorts in the wiring or a faulty panel. Once the issue is fixed, replace the blown fuse with one of the same rating. If the fuse blows again, there may be a deeper issue like a controller failure. Seek professional help.
Final Thoughts on Choosing the Best Inline Solar Fuse
Selecting the right inline solar fuse is essential for protecting your investment and ensuring safe power generation. The top picks offer reliable protection ranging from basic budget options to premium high-temp models.
Prioritize waterproof ratings and material quality to ensure your system survives harsh weather conditions. Matching the amperage and voltage requirements is critical to prevent system failures and safety hazards.
Prices change frequently due to market demand and availability. Always verify current prices and stock before buying to ensure you get the best deal on the correct specifications.
